F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« on: December 25, 2015, 11:48:17 AM »
As many of you are familiar with LOD Editor, use this as an installation manual for the F-14B Cockpit Models for the 4.33 version of Falcon BMS. The method of installation has changed from previous versions of this simulation.

Download the F-14B
http://www.ElectronicBattlefield.com/downloads/F14b_433_1.0.rar

Use our tutorial on replacing models http://www.electronicbattlefield.com/smf/index.php/topic,36.0.html for reference only with 4.33!

-Backup your 4.33 folder to another drive
-Any Questions, Ask!

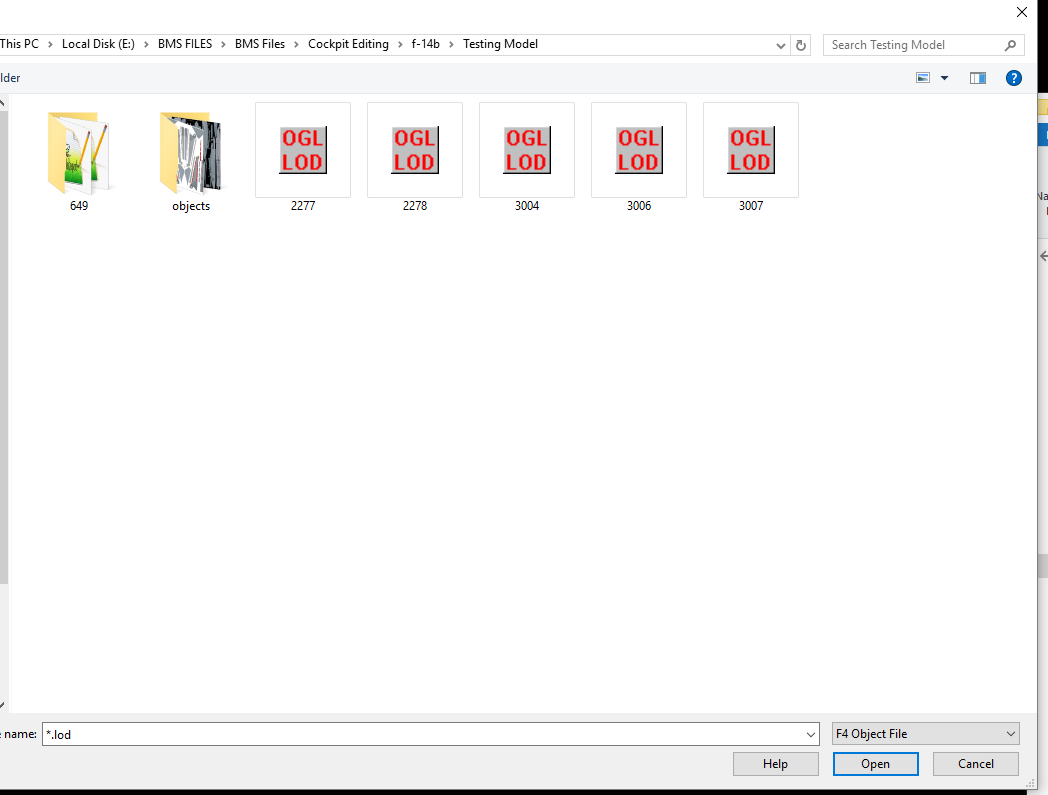

Download Contents:

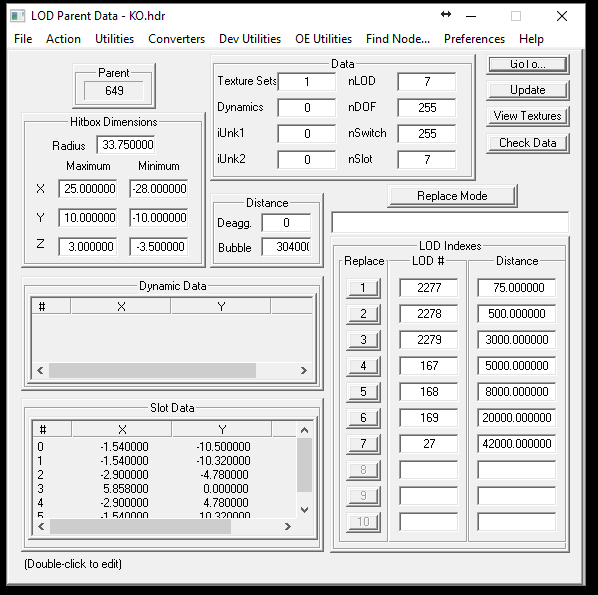

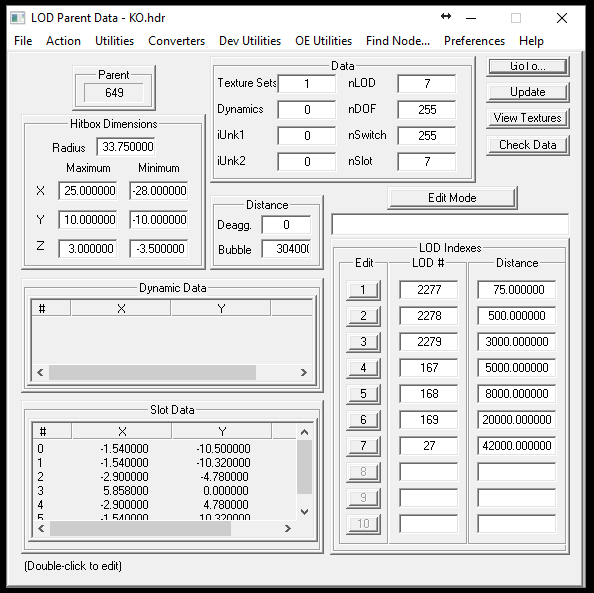

1) Start with LOD Editor and replace the External Model. (Parent #649)

  -Click "Edit" until "Replace" is seen

  -Replace LOD#2277 from Download
  -Replace LOD#2278 from Download
  -Make sure to set "Texture Sets" to 1, and "nDOF/nSwitch" to 255

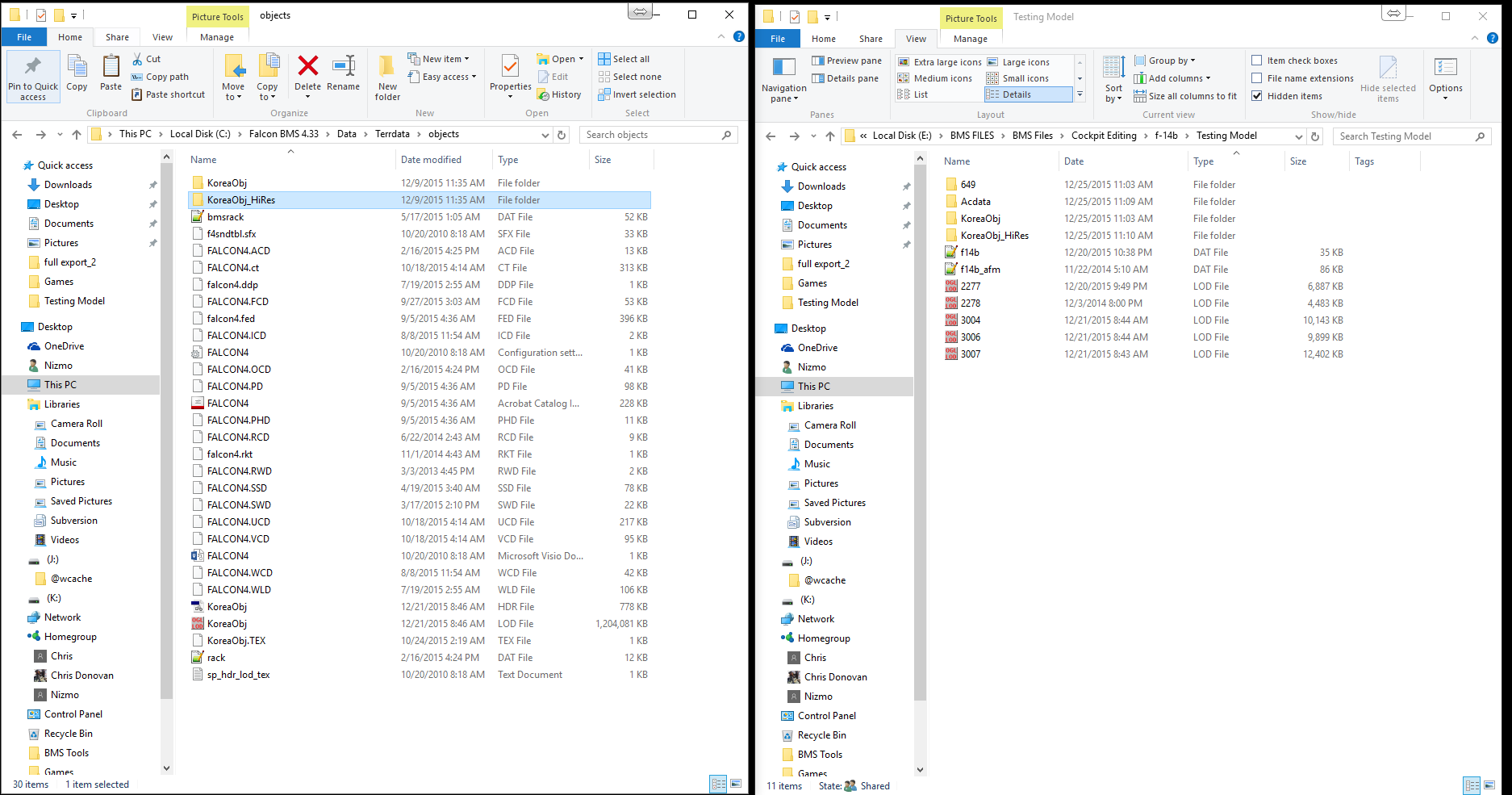

2)Copy the contents of the "objects" folder from the Download to BOTH of your texture directories: "KoreaObj and KoreaObj_HiRes"


3)Using the 649 folder from the download, overwrite the installation folder located here:/Falcon BMS 4.33/Data/Art/ckptart/

4)Using the Acdata from the download, replace the files located in your installation located here:/Falcon BMS 4.33/Data/sim/Acdata/

Cockpit Model Installation

-The Cockpit Models do not vary from previous installs. Install the same way.
-If you installed the External Model above, textures are already installed :)

1)Replace LOD#3004, 3006 and 3007 in your installation using LOD Editor from the download. Files are named identically, when using LOD Editor replacing LOD#3004 from your install to LOD#3004 from the download is correct.

2)-Make sure to set "Texture Sets" to 1, and "nDOF/nSwitch" to 255



-Known Issues:
-Weapons Locations (Racks/Pods)
-Textures Still in development
-Some functions are INOP
-No Installer Available currently



Offline duckdown

  • Member
  • ***
  • Posts: 2
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #1 on: December 26, 2015, 06:20:38 PM »
Thanks for updating this. I have a question on the install. I have been able to do everything except replace LOD 3004,3006 and 3007. I can't find these LOD's in my original installation.

Where are these files supposed to be located and if they are not in the base installation, where should I put the new files?

Thanks!

Offline Nizmo

  • Administrator
  • Trusted Member
  • *****
  • Posts: 217
  • Cockpit Developer
    • www.ElectronicBattlefield.com
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #2 on: December 26, 2015, 06:26:54 PM »
Hi

Open LOD Editor and type in 3004 in the Right Box under "Parent", Right Lower part of menu.

It will bring up the model.

Offline Yankee

  • Member
  • ***
  • Posts: 7
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #3 on: December 28, 2015, 12:44:28 PM »
Pfff... it's very complicated for me, please can you make an automatic installer ? Please please please !? :p

Offline Nizmo

  • Administrator
  • Trusted Member
  • *****
  • Posts: 217
  • Cockpit Developer
    • www.ElectronicBattlefield.com
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #4 on: December 28, 2015, 03:30:19 PM »
Pfff... it's very complicated for me, please can you make an automatic installer ? Please please please !? :p

Yes, that is the plan. Very soon.

Offline Yankee

  • Member
  • ***
  • Posts: 7
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #5 on: December 29, 2015, 06:11:49 AM »
Before 2016 ? :p

Offline Yankee

  • Member
  • ***
  • Posts: 7
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #6 on: February 03, 2016, 04:04:14 AM »
Any news for a .exe ?

Offline Nizmo

  • Administrator
  • Trusted Member
  • *****
  • Posts: 217
  • Cockpit Developer
    • www.ElectronicBattlefield.com
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #7 on: February 04, 2016, 01:40:41 AM »
Sorry, been busy on all things. I'll see what I can do within a day or two.

Thanks!

Offline hans

  • Member
  • ***
  • Posts: 9
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #8 on: February 06, 2016, 06:25:11 AM »
Thank you so much Nizmo, for this great aircraft and KoreaHD theater.  :)

I request from you  : Can you give to us F-15C Eagle (with F15C cockpit) for 4.33? Because, KoreaHD's F15C Eagle is the great aircraft in the sim world.  :)

With my best regards.

Hans

Offline Yankee

  • Member
  • ***
  • Posts: 7
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #9 on: February 12, 2016, 04:46:34 AM »
Sorry, been busy on all things. I'll see what I can do within a day or two.

Thanks!

I hope try this legend in the skies ! Thank you ! ^^

Offline Nizmo

  • Administrator
  • Trusted Member
  • *****
  • Posts: 217
  • Cockpit Developer
    • www.ElectronicBattlefield.com
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #10 on: February 27, 2016, 10:00:43 AM »
For anyone who is having any issues, simply download KoreaHD on the main theaters page, the F-14 is completely installed.

http://electronicbattlefield.com/downloads/KoreaHD_4.33_1b.rar

Offline Tom73

  • Trusted Member
  • ****
  • Posts: 29
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #11 on: February 27, 2016, 11:25:42 AM »
Many thanks, here's hope.. :)

Offline Yankee

  • Member
  • ***
  • Posts: 7
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #12 on: March 01, 2016, 04:26:24 AM »
This cockpit is ugly, it looks like a bad porting 4.32 to 4.33, and it was nothing like what's in the videos. KoreaHD is poorly imported.

In addition, I tried the cockpit in stand-alone, my game is crashing at launch.

Offline Nizmo

  • Administrator
  • Trusted Member
  • *****
  • Posts: 217
  • Cockpit Developer
    • www.ElectronicBattlefield.com
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #13 on: March 01, 2016, 08:40:14 AM »
The developers of 4.33 changed some of the 3D settings. I have to go through the pits and fix the issues.

Thanks for letting us know!

Offline Yankee

  • Member
  • ***
  • Posts: 7
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #14 on: March 03, 2016, 01:58:05 PM »
By the way, the 3D model isn't good, the textures are awful (Modex deformed, and NAVY is inverted). And no pilots in the plane !

It's long to porting in 4.33 a good cockpit ?

Offline Nizmo

  • Administrator
  • Trusted Member
  • *****
  • Posts: 217
  • Cockpit Developer
    • www.ElectronicBattlefield.com
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #15 on: March 03, 2016, 08:21:08 PM »
You are using a in development ALPHA model of the F-14.

Yes, things were changed in 4.33, and it takes a long time.

Thanks for the input.


Offline Tom73

  • Trusted Member
  • ****
  • Posts: 29
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #16 on: March 05, 2016, 05:28:54 PM »
By the way, the 3D model isn't good, the textures are awful (Modex deformed, and NAVY is inverted). And no pilots in the plane !

It's long to porting in 4.33 a good cockpit ?

Still a gift from Nizmo. Maybe a bit patience and more neutral stance would be nice? Just saying.
I also noticed a lot has changed while trying to use one of Nizmo's older pits in 4.33, and even the BMS F-16 3D pits have different HUD overlay models now.

Since all this is freeware, no one can claim a "I want this or that", it is all done in spare time, of both BMS developers as well as Nizmo here.

My 2 cents..

Tom

Offline Nizmo

  • Administrator
  • Trusted Member
  • *****
  • Posts: 217
  • Cockpit Developer
    • www.ElectronicBattlefield.com
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #17 on: March 06, 2016, 07:01:30 PM »
Thanks Tom.

I've spent a ton of modeling time on the F-14 recently, ill make an update soon.

I will be sure to get the new model and the others in KoreaHD release for 4.2/16

Offline Tom73

  • Trusted Member
  • ****
  • Posts: 29
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #18 on: March 09, 2016, 09:22:08 AM »
Sounds good mate, but take your time.  ;)
Chrs

Tom

Offline MikeNcali

  • Member
  • ***
  • Posts: 2
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #19 on: April 19, 2017, 06:29:42 AM »
Any word on an installer for the F14B cockpit?

Offline Nizmo

  • Administrator
  • Trusted Member
  • *****
  • Posts: 217
  • Cockpit Developer
    • www.ElectronicBattlefield.com
Re: F-14B Cockpit/External Model Manual Install Falcon BMS 4.33
« Reply #20 on: April 25, 2017, 08:03:28 AM »
Any word on an installer for the F14B cockpit?

Let me look at the installer and see if I can make it out for 4.33_3!

Ill get back to you with a reply on this thread.
